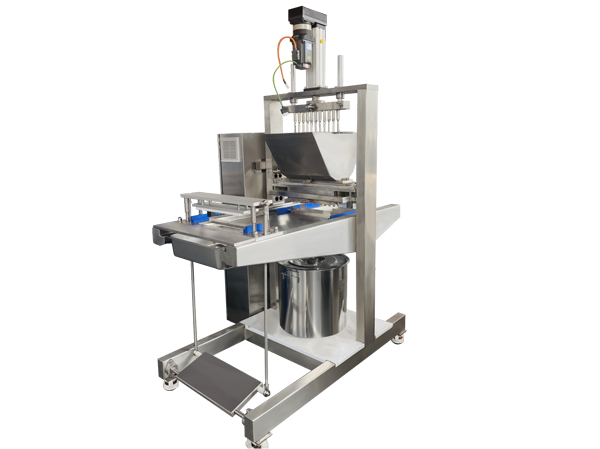

Gummy candy depositor machine-GD20

Machine Model： GD20

This is initial machine model, driven by cylinder, can only make solid gummy.

Manually change depositing quantity.

Machine Materials: Stainless steel 304.

Depositing nozzles: pure cooper

Electrical components： Siemens - Germany

Cylinder : Airtac - Taiwan,China

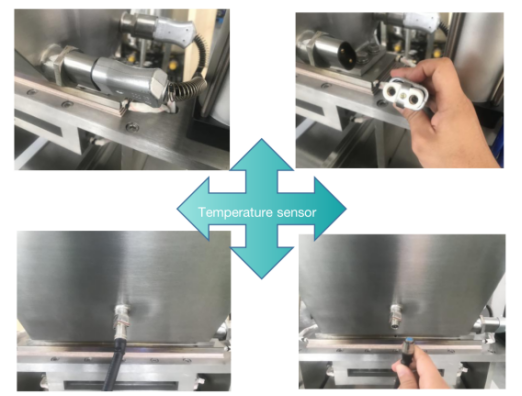

Temperature sensors: Omron -Jacky

Voltage :380V 50HZ,3PH

Strike speed :30times/min

Depositing quantity:1-10g

Hopper volume: 23L

Consumption of air 20CBM/min

Power:7.2kw

Dimensions:800*800*1700mm

Machine details

The hopper is processed by CNC without any sanitation dead angel. Easy to wash .

The hopper has two layers with conduction oils

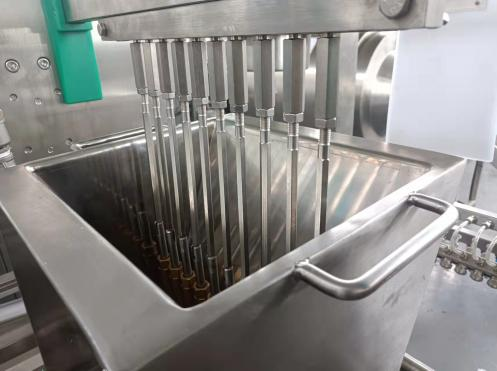

20 piston nozzles are all made of pure copper for better heat transfer effects

Piston rods are easily removed for cleaning.

The position of each piston rod can be adjustable (up and down), make different dosing quantity possible

Operation Manuel

1.connect compressed air and power. Turn on the depositing machine, set the temperature as required.Depositing is driven by cylinder, control the depositing amount by adjusting the piston travel.

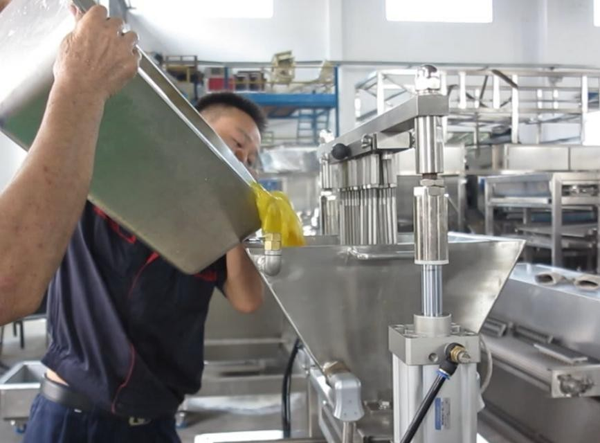

2. Add syrup to the hopper manually.

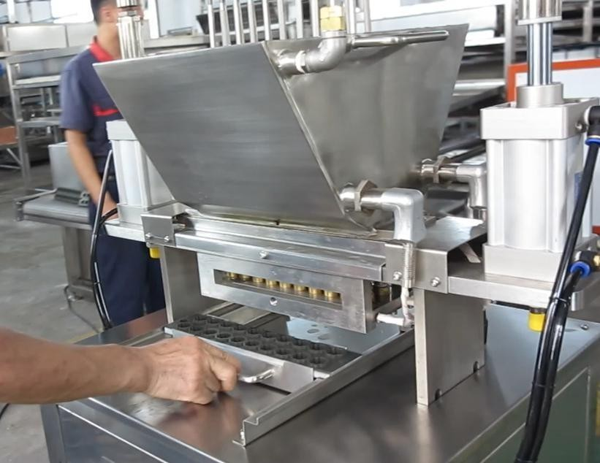

3. put mould under the hopper

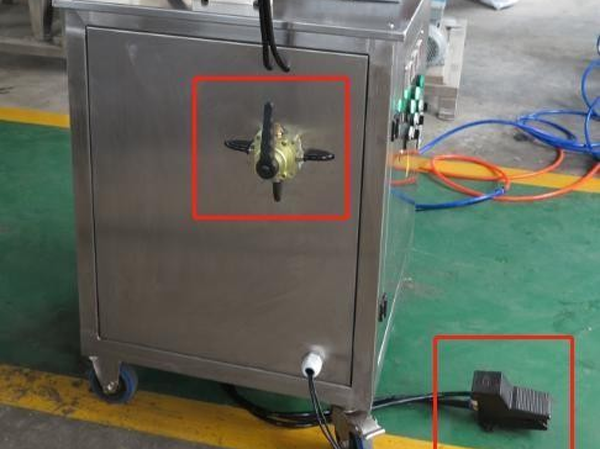

4.Turn on depositing button or step on the pedal

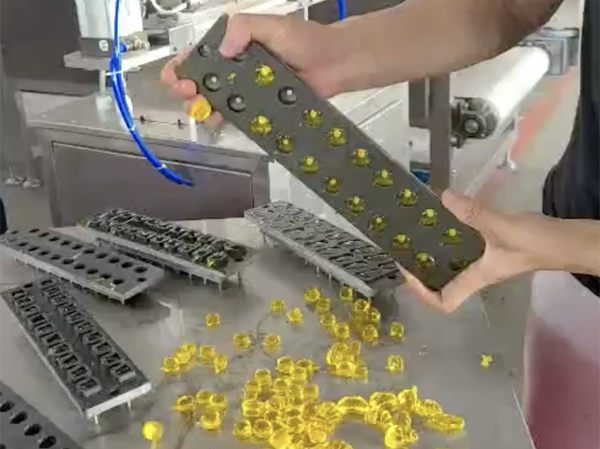

5.demoulding by hand after the gummy is dry.
