Die-formed Gummy Production Line

Die-formed Gummy Candy Production Line

This line can produce all kinds of die-formed hard boild candy.

  Automatic Die-formed Gummy Candy Production Line can produce all kinds of Gummy Candy, solid Gummy Candy, filled Gummy Candy, shaped Gummy Candy, color Gummy Candy and other Gummy Candy

Continuously vacuum cooker, guarantee the quality of sugar masses.

Special forming style is better for central-filling.

Production capacity can be from 200 to 1000kg/h.

Sanitary structure designed.

The central filler, rope sizer and former work together available.

Different candy shape can be made depend upon changing of the mould.

A better effect of cooling is available by the conveying and cooling system.

Lollipop can be made when the lollipop former is set instead of Gummy Candy former.

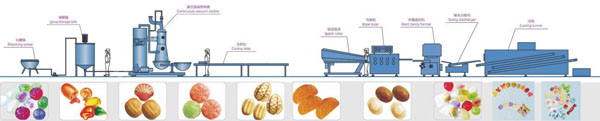

Technological process of Die-formed Gummy Production Line

Sugar melting cooker-Storage tank-Vacuum sugar cooking machine-Cooling table-Center filling machine-Batch roller-Rope sizer-Candy forming machine-Cooling sifter-packaging machine

Main component equipment of Gummy Production Line

Vacuum sugar cooking machine

It features automatic temperature control, high output, time-saving, short cooking time, and can manufacture the syrup with high transparency.

Sugar melting cooker

Batch size(L):300

Weight(kg):280

Dimension(mm):1100*1100*1700

②. Storage tank

 Batch size(L):300

Weight(kg):220

Dimension(mm):740*740*1250

③. Technical parameters

Production capacity(kg/h):350-400

Heating area(m³):2.45

Steam pressure(MPa):0.7-1.0

Steam consumption(kg/h):约about100

Syrup temperature before entering(°C):110-115

Temperature after discharging(°C):135-145

Power- Fixed displacement pump(kw):0.75

Power- Vacuum pump(kw):5.5

Dimension(mm):1900*1700*2300

Machine weight(kg):800

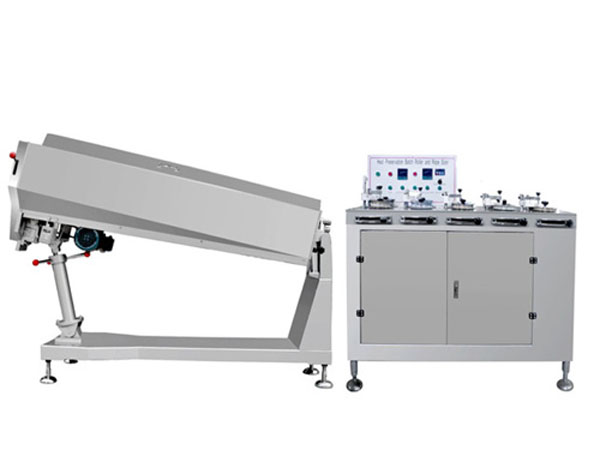

Heat preservation batch roller and rope sizer

Purpose

It is suitable for heat insulation and pulling of sugar pastes.

Feature

It has such features as simple operation, labor saving and high efficiency.

Technical parameters

Batch roller maximum capacity(m³)：0.20

Running speed(m/min):≤40

Total power(kw):7

Dimension(mm):(Four-wheel):4270*890*1700

Dimension(mm):(Five-wheel):4525*890*1700

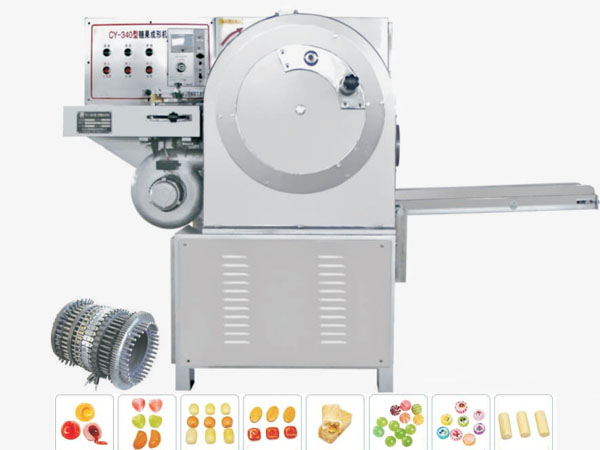

Multi function candy forming machine

It is suitable for production of gummy canyd,hard candy,lollipop  as well as production of cushions (candy shapes varying according to customer requirements), such as: spherical, oblate, oval and other irregular shapes.

Feature

Punching and forming, stable running, high output

Technical parameters

Production capacity: w250kg/h

Total power: 2.4kw

Weight: 800kg

Dimension: 2000 x 1100 x1300mm
