What machines does the Gummy production line consist of

What machines does the Gummy production line consist of?

Gummy machines usually have the following types:

    Gummy Cooking Machine

    JLM-1200 Gummy Cooking Machine is a special machine for making gelatinous Gummy from gelatin, pectin, carrageenan, agar and various kinds of modified starch.JLM-1200 Jelly Candy Cooking Machine is a special machine for boiling gel candy with gelatin, pectin, carrageenan , agar and various modified starches as raw materials. The machine has been specially designed with a bundle type of hot water. The sugar boiler has been specially designed with a bundled heat exchanger, which is capable of producing a large heat exchange with a small volume . These heat exchangers are capable of producing a large volume of heat exchange with a small volume, and are equipped with a vacuum chamber to ensure the sugar level of the boiling.

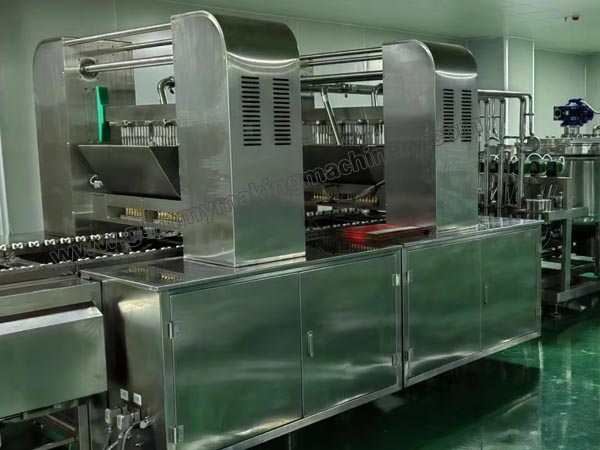

    Mogul Candy Depositor

    The high-end design can speed up production and maximize productivity. Maintenance is simpler and cleaning is quite convenient.

    Candy Cooling Tunnel

    The cooling tunnel is a special equipment for cooling all kinds of candies. The machine contains multiple layers of food grade stainless steel cooling channels for continuous uninterrupted cooling of sugar bars. The cooled candy bars enter the cutting and packaging machine for fast cutting and packaging. The machine is equipped with an independent cooling unit, which can control the temperature in different periods, and is an ideal candy cooling equipment.

    Conbined Dosing Pump

    Combined dosing pump is applied to measure and feed flavor/color liquid into candy production line. It is capable of feeding various flavor and color for candy product. ESP-0001 Combined dosing pump feature is its accurate measure, less wear, and long running life .

    PL5-00 Pectin Preparation System

    PL5-00 Pectin preparation system is a configuration equipment integrating glue tank and mixing tank.

    The raw materials of gelatin, pectin, carrageenan and various modified starches are melted by heating, stirring continuously during the melting process, and then pumped into the mixing tank through the conveying pump.

    The PL5-00 preparation system is an important front-end equipment before the soft candy is boiled.

    PL3-00 Configuration System

    The PL3-00 configuration system is a device used for secondary ingredients after the syrup is boiled.

    Various raw materials and boiled syrup are automatically weighed to ensure the taste of the candy in an accurate proportion. During the configuration process, the raw materials are continuously heated and stirred to ensure the smooth progress of the subsequent process.

    The PL3-00 configuration system is an important part of the gummy production line.

2.What are the units and components of the Gummy Making Equipment?

The units and components of gummy making equipment can vary depending on the specific equipment and manufacturer, but here are some general units and components:

- Mixing tank: where the gummy mixture is prepared

- Heating and cooling system: used to melt and cool the gelatin mixture

- Depositing system: used to dispense the mixture into molds

- Molds: where the gummies take shape

- Conveyor belt: used to transport the molds through the gummy-making process

- Starch conditioning system: used to coat the gummies with starch to prevent sticking

- Drying tunnels: used to dry and set the gummies

- Packaging equipment: used to package the gummies into bags or containers

Other possible components include pumps, valves, sensors, and controls to regulate the flow, temperature, and quality of the ingredients and process.

3.What are the materials used to make the Gummy Making Equipment?

The materials used to make gummy making equipment can vary depending on the specific equipment and manufacturer, but here are some common materials:

- Stainless steel: commonly used for the mixing tank, depositor, molds, and drying tunnels due to its resistance to corrosion, high temperatures, and easy cleaning properties.

- Food-grade plastic: used for some parts of the equipment such as the conveyor belts, and packaging components.

- Rubber and silicone: used for seals, gaskets, and other components that need to be flexible and withstand high temperatures.

- Aluminum: used for some parts of the equipment such as the molds and conveyor components, as it is lightweight and has good thermal conductivity.

- Glass: used for some inspection windows to allow operators to visually check the gummy-making process.

Manufacturers may also use other materials for specific parts and components of gummy making equipment, depending on their suitability, performance, and cost.
