1200 Large gummy making machine

Model:ZY1200

Capacity:1200kg/h

Candy weight: According to the size of candy

Depositing Speed:55-65n/min

Steam requirement:650kg/h,0.5-0.8MPa

Compressed air requirement:0.45m³/min,0.4-0.6MPa

Working condition： Temperature 20-25°C；Humidity 45-55%

Electric power needed:48kw/380v

Total Length:22m

Weight of machine:7500kg

    The gummy-making ingredients can be gelatin pectin carrageenan agar etc. The candy production line is designed to meet food safety and GMP standards. With the use of different configurations, this production line produces single color gummy candy, two-color gummy candy, striped gummy candy and other gummy candy types.

   Large gummy candy production line :which can produce gummy with multiple shapes and variety colors on base of advanced technology process. It is an ideal machine to produce superior quality gummy candy of single color and double color; By change-over molds or depositors, different color and different shape of gummy can be also produced. The on-line mixer achieves the quantitative dosing and mixing of the flavor, color and acid. High degree of automation can produce super quality of gummy, at the same time it saves the manpower and the

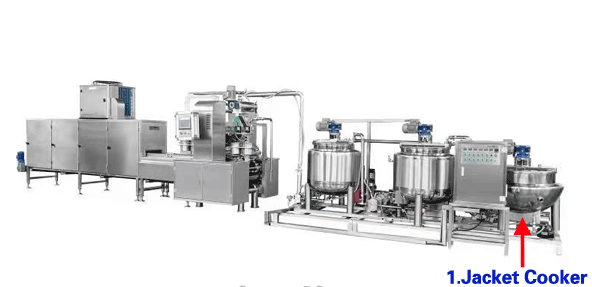

Flow of gummy making machine

Jacket cooker-Mix tank-Lobe pump-Storage tank-Depositor-Cooling tunnel-Oil spray-bagging machine

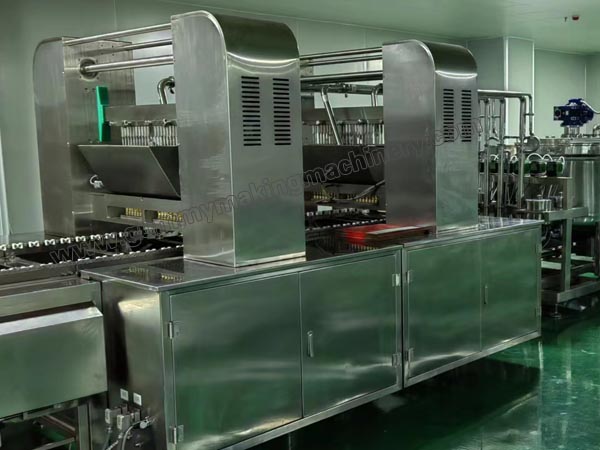

Gummy Depositing machine

The depositing machine uses PLC to control the parameters such as temperature and depositing speed. These parameters are easy to read and set on the touch screen, while the syrup flow is precisely controlled via a frequency control system to ensure a stable sugar paste quality.

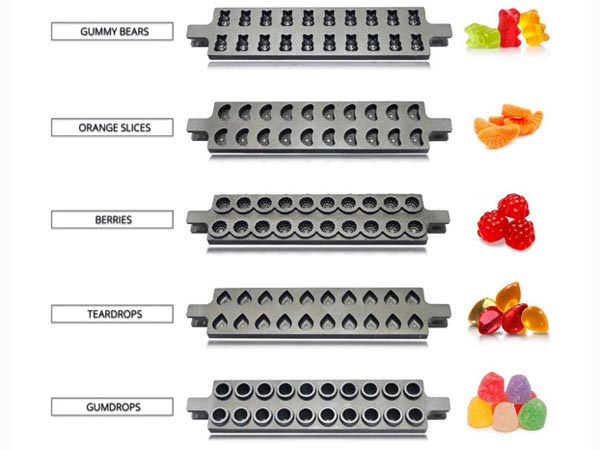

Gummy mold

The production line manufactures candies in a variety of shapes using different molds. We will design molds according to your needs.
