ZY600 gummy making machine

Model:ZY600

Capacity:600kg/h

Candy weight:According to the size of candy

Depositing Speed:25-55n/min

Working condition：20-25,C temperature humidity 55%

Electric power needed:36kw/380v

Total Length:22m

Weight of machine:6000kg

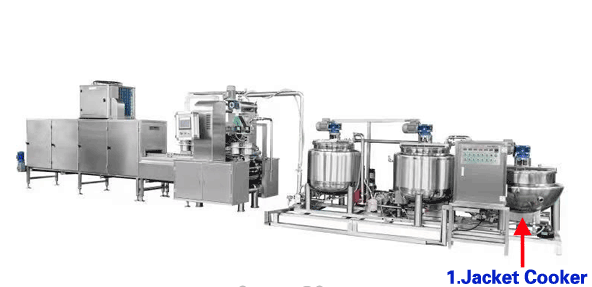

Flow of gummy making machine

Jacket cooker-Mix tank-Lobe pump-Storage tank-Depositor-Cooling tunnel-Oil spray-bagging machine

continuous cooking system for both pectin/gelatin gummy

-2x 500L Jacket heated Pectin and sugar dissolving tank with High shear mixer and variable speed drive.

-1x 500L cooling and heating gelatin tank with high shear mixer, variable speed drive and Sweep mixing with scrapers

– Heated transfer pump with variable speed control

– Hot water recirculation system including Jacket transfer pipes, water tank with heaters and recirculation pump

– 1x600L Jacket heated storage tank with sweep mixing with scrapers and variable speed drive

-Integrated electrical cabinet including control of main power of each cook and control of VFD, and Temperature

-Load cell weighing sensors as options

-SS316 Food contact part

Mixers  System

-Static and inline mixers for colors, flavors and Acid

Depositing and demolding system

-Servo driven and Siemens PLC control

-Auto mold lubrication system

-Quick release mold set

-hopper heating system

-Dual hopper as options for dual color and central filled gummy

-LED HMI 10′ Siemens Touch Screen

Cooling system

-FDA Approved Non-stick cooling belt

-20HP Air cooling with designed enclosed cooling tunnel

-Electrical cabinet with 0-20C temperature and humidity control

Coating system

-Z type Conveyor from cooling tunnel to coating drum

-Variable Speed control

-Oil, wax and sugar coating available
