ZY800 gummy making machine

Model:ZY800Q

Capacity:800kg/h

Candy weight:According to the size of candy

Depositing Speed:25-55n/min

Working condition：20-25,C temperature humidity 55%

Electric power needed:39kw/380v

Total Length:25m

Weight of machine:8200kg

Flow of gummy making machine

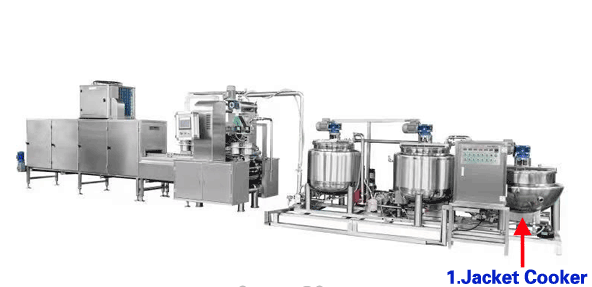

Jacket cooker-Mix tank-Lobe pump-Storage tank-Depositor-Cooling tunnel-Oil spray-bagging machine

Features

    The flavors and color mixing system uses a dosing pump and dynamic mixer manufactured by LM to ensure the mixed syrup is uniform in color. The food coloring and flavoring amount is adjustable according to your needs.

    The improved depositing head is more reliable and accurate.

    The punch is easy to operate and replace. The punch stroke (sugar weight) is adjustable online.

    The hopper uses electric heating with an easily adjustable temperature.

    Its improved cooling tunnel features the same height, longer length and more accurate temperature control over previous models. The full refrigeration unit is integrated into the refrigerated cooler.

    The unique demolding device features a tank chain structure and is equipped with a rotating brush to ensure a full candy demolding process.

    Its PVC cooling conveyor belt is manufactured using the latest technology. It features a smooth appearance and is easy to clean and maintain, ensuring a long service life.

   The production line can be customized to fit your site conditions.
