ZY80 gummy making equipment

Model:ZY80Q

Capacity:80kg/h

Candy weight:According to the size of candy

Depositing Speed:25-55n/min

Working condition:20-25,C temperature humidity 55%

Electric power needed:10kw/380v

Total Length:13m

Weight of equipment:2000kg

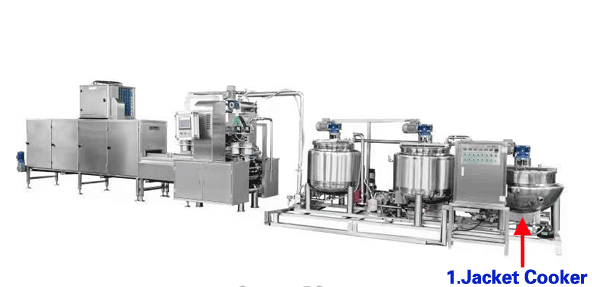

Flow of gummy making equipment

Jacket cooker-Mix tank-Lobe pump-Storage tank-Depositor-Cooling tunnel-Oil spray-bagging equipment

Gummy making equipment characteristic

1. Automatic control of the dissolution temperature, with PLC and touch screen separately controlled high automation

2. Storage tank with level sensor to detect syrup level

3. The bottom of the dissolving tank is equipped with pneumatic valve and tube filter to prevent the syrup from sticking to the leaf pump

4. It can process candy of various shapes

5. The weighing system ensures that the proportion of ingredients in each batch is accurate to ensure that each batch of candy has the same quality.

6. In this step, water, sugar and mixture, glucose and pectin syrup will be weighed

7. Demoulding is completely clean and sanitary, and the candy is uniform overall
